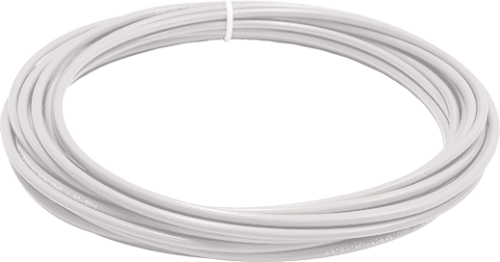

Unjacketed Single Tubes

These unjacketed single tubes are available in fire-retardant and non-flame-retardant versions. Fire-retardant tubes are UL listed for indoor general applications. The non-flame retardant tubes are designed for indoor single tube drops where fire rating is unnecessary. Semi-transparent tubes are also offered for tube connection in Tube Distribution Units.

Find a Distributor

Product Downloads

Product Information

Download

Specifications

PropertySpecification
OFN General Purpose Fire RatedUL 1581, CUL FT1, CSA OFN (FT1) Listed
Operation Temperature Range –General Purpose Rated-4°F to +158°F (-20°C to +70°C)
Minimum Bend Radius for 8 mm OD Single Tubes (During and After Installation)9 in
Minimum Bend Radius for 6 mm OD Single Tubes Single-Tubes6 in
Inner / Outer Tube Diameter6 mm / 8 mm (Except TC01T6M 4.25 mm / 6 mm)

Ordering Information

Part NumberDescriptionOutside Dia. (In.)Max Wgt. (Lbs./Kft.)Max Tensile Load (Lbs.)Std. LengthMax Length

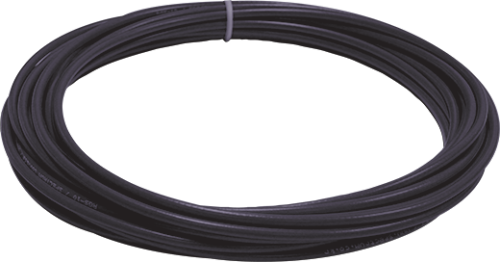

TC01TBXBlack Tube – Non-flame Retardant0.31515603,0003,000
TC01TCXClear Tube – Non-flame Retardant0.31532605003,000
TC01TGXUL/CUL/CSA OFN Rated0.31517601,0003,000
TC01T6MClear Tube – Non-flame Retardant 6 mm OD x 4.25 ID0.23617605003,000

Resources

Sumitomo Product Specifications
SF-F04-011: TC01TBX, TC01TCX, TC01TGX, TC01TXX and TC01T6M FIRE AND NON-FIRE RETARDANT TUBES
SF-F04-012: TC01TCX SINGLE NON-FIRE RETARDANT TUBE
SF-F04-014: TC01T6M SINGLE NON-FIRE RETARDANT TUBE
Sumitomo Recommended Procedure
SP-F04-003: TUBE PRESSURE TESTING PROCEDURE
SP-F04-004: TUBE OBSTRUCTION TESTING PROCEDURE
SP-F04-008: TUBE CABLE INSTALLATION PROCEDURES
LFI Resource Portal
LFI Resource Portal | Sumitomo Electric Lightwave Corporation

Features

  • Unjacketed Single Tubes
  • Non-Flame-Retardant, Fire-Retardant and Semi-Transparent Tubes Available
  • TGX is UL 1581 OFN / CUL FT 1 / CSA Listed
