PrecisionFlex® Empty Patch Panels

The ability to have a variety of configuration options, a durable protected frame and density flexibility is most important for today’s wide array of network requirements. Sumitomo Electric Lightwave understands this importance which led to the innovation of the PrecisionFlex® Patch Panels. A durable panel frame with the PrecisionFlex® slide out & angle down feature that provides great flexibility for today’s diverse applications. Available in standard 1RU, 2RU, 3RU, & 4RU sizes with LGX or HD density options. The PrecisionFlex® Patch Panels are the precise fit for Sumitomo Electric Lightwave’s data centers solutions.

Find a Distributor

Product Downloads

Product Information

Download

Ordering Information

PrecisionFlex® Patch Panel

Part NumberPanel SizeModuleModule StylePort Cap.Tray Cap.Dimensions (W x H x D)
FT01L031RULGX372 LC1 Tray1.75 x 17.6 x 17.75 in
(45 x 425 x 447 mm)
FT02L062RULGX6144 LC2 Trays3.5 x 17.6 x 16.75 in
(89 x 447 x 425 mm)
FT03L093RULGX9216 LC3 Trays5.25 x 17.6 x 16.75 in
(133  x 447 x 425 mm)
FT04L124RULGX12288 LC4 Trays7 x 17.6 x 16.75 in
(178 x 447 x 425 mm)
Kitting components with every unit comprised of screws, fiber management, splice tray holder, & more. Fixed versions do not include slide out & angle down.

Fixed PrecisionFlex® Patch Panels

Part NumberPanel SizeModuleModule StylePort Cap.Tray Cap. Dimensions (W x H x D)
FT02L06ST2RULGX6144 LC2 Trays3.5 x 17.6 x 16.75 in
(89 x 447 x 425 mm)
FT04L12ST4RULGX12288 LC4 Trays7 x 17.6 x 16.75 in
(178 x 447 x 425 mm)
Kitting components with every unit comprised of screws, fiber management, splice tray holder, & more. Fixed versions do not include slide out & angle down.

PrecisionFlex® Accessories

Cable Entry Housing

Part NumberPanel SizeCable RangeBraided TubeCompatible Items
FTK-02882RU0.71-0.98 in (18-25 mm)2FT02L06; FT02H24; FT02L06ST; FT02H24ST
FTK-05763RU; 4RU0.787-1.02 in (20-26 mm)4FT03L09; FT03H36; FT04L12; FT04H48; FT04L12ST; FT04H48ST
FTK-0576-2RU2 x 2RU0.875-1.26 in (22-32 mm)4FT02L06; FT02H24; FT02L06ST; FT02H24ST
FTK-08643 x 2RU0.875-1.26 in (22-32 mm)6FT02L06; FT02H24; FT02L06ST; FT02H24ST
1RU does not require cable entry housing.

Cable Entry Housing Bridge

Part NumberDescriptionCompatible Items
FTK-0864-SHORT-BRIDGEA field-transition bridge that extends into another cable entry housing with rack units beneathFTK-0576-2RU; FTK-0864
FTK-0864-LONG-BRIDGEA field-transition bridge that extends into another cable-entry housing with 1 rack separationFTK-0576-2RU; FTK-0864

Flush Mount Kits

Part NumberPanel SizeCompatible Items
FT0200FM2RUFlex Patch Panels; PrecisionFlex® Empty Patch Panels
FT0304FM3RU; 4RUFlex Patch Panels; PrecisionFlex® Empty Patch Panels
Screws are not included in the kit – Flex Patch Panel kitting screws are compatible.

Splice Tray Holders

Part NumberPanel SizeTray Cap.Compatible Items
FT-PFST-B-1RU-HOLDER1RU1 TrayFT01L03; FT01H08; FT-FPFST-B-R
FT-PFST-B-2RU-HOLDER2RU2 TraysFT02L06; FT02H24; FT02L06ST; FT02H24ST; FT-FPFST-B-R
FT-PFST-B-3-4RU-HOLDER3RU; 4RU4 TraysFT03L09; FT03H36; FT04L12; FT04H48; FT04L12ST; FT04H48ST; FT-FPFST-B-R

Features

  • Front Door
    • Clear
    • Easy to Open & Removable

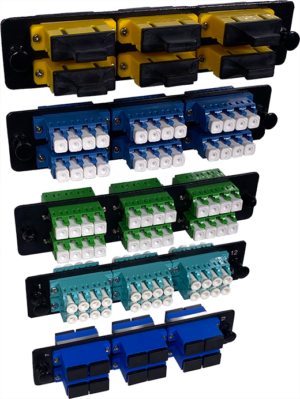

  • Flexible Faceplate & Bracket Styles
    • LGX or HD Density
  • PrecisionFlex® Slide Out & Angle Down Panel
    • Allowing for Easy Access to Splicing Area & Back of Bulkhead or Cassette
  • Versatile Rack Mounting Brackets
  • Durable Aluminum Frame
  • Back Door
    • Developed for Easy Removable
    • Limited Rear Slide Out
