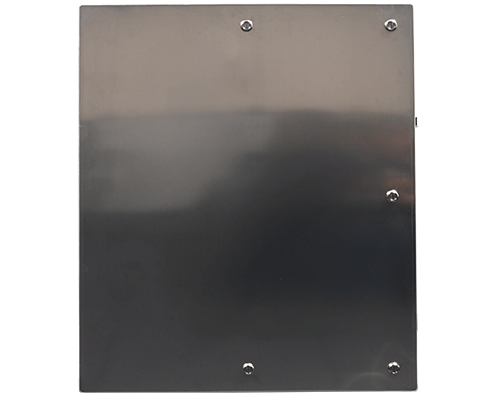

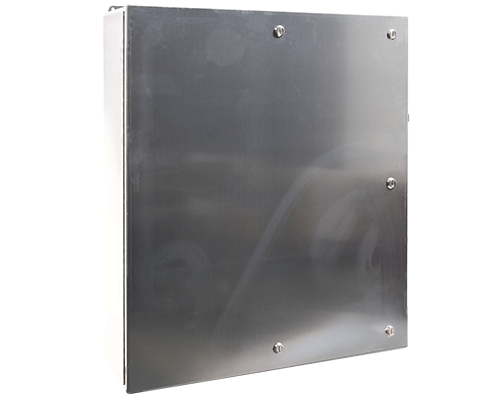

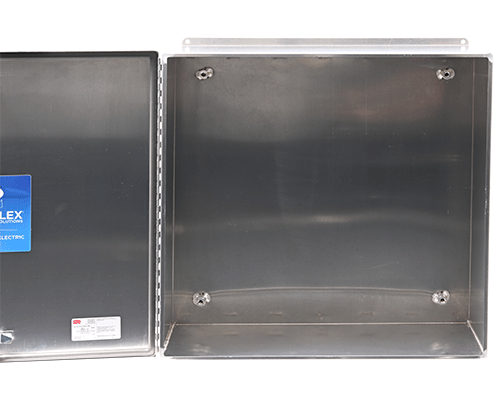

Featuring a scalable and flexible design, Sumitomo Electric Lightwave’s Outdoor NEMA 4X-Rated Tube Distribution Units are lightweight wall, pole, trestle, or structure mounted enclosures with additional external top and bottom mounting flanges. These enclosures are used at tube cable transitions or branching points and tubes are joined together using push-fit connectors. The result is a pathway capable of housing and protecting FutureFLEX® Air-Blown Fiber® bundles designed and installed to support today’s critical, robust, and scalable high-speed networks. In addition, enclosures with a NEMA 4X-rating prevent damage from harsh outdoor elements. This is product is not for flooded environments.

Find a Distributor

Product Downloads

Product Information

Download

Ordering Information

PART NUMBERRATINGTUBE CAPACITYMATERIALCOLORWEIGHTDIMENSIONS
(W. x H. x D.)
DE24XPPUNEMA-4X84 Tubes
(approx.)		AluminumSilver21 lb (9.5 kg)24 x 24 x 8 in (610 x 610 x 203 mm)
DE36XPPUNEMA-4X168 Tubes
(approx.)		AluminumSilver35 lb (15.9 kg)30 x 36 x 8 in (762 x 914 x 203 mm)
DE36XPPUSTNEMA 4X168 Tubes
(approx.)		Stainless SteelSilver60 lb (27.2 kg)30 x 36 x 8 in (762 x 914 x 203 mm)

Accessories

PART NUMBERDESCRIPTION
DE24XPPUPPerforated Panel Kit for DE24XPPU (Mild Steel); 21 x 21 in (533 x 533 mm)
DE36XPPUPPerforated Panel Kit for DE36XPPU (Mild Steel); 33 x 27 in (838 x 686 mm)
DE36XPPUSTPPerforated Panel Kit for DE36XPPUST (Mild Steel); 33 x 27 in (838 x 686 mm)
DEXPPUSTKEYCylinder Padlock Kit to Replace Slotted Latch for DE36XPPUST
DEDTTPRack-Mounted Tube Distribution Hardware (Standard Capacity); Holds up to Twelve (12) 7-Tube Cables (84 Tubes Total)
DEDTTP2Rack-Mounted Tube Distribution Hardware (High Capacity); Holds up to Six (6) 19-Tube Cables (114 Tubes Total)

Features

Features

  • Protective aluminum or steel frame
  • NEMA 4X-Rated
  • Hinged door secured with multiple-slotted latch
  • Additional padlock kit to replace slotted latch (DE36XPPUST only)
  • Removable door
  • Perforated back panel kits for additional tube management

Benefits

  • Protects transitioning tubes
  • High tube capacity
  • Provides low profile for multiple outdoor locations
  • Reduces risk from corrosion, water, and dust
  • Reduces risk of dust or particulate matter from entering
  • Facilitates efficient distribution of pathways between locations
