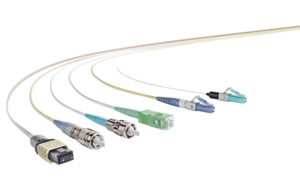

Lynx-CustomFit™ MPO Splice-On Connectors
Sumitomo Electric Lightwave’s Lynx-CustomFit™ MPO is the industry’s first MPO fusion splice-on field installable connector for customized, on-site, terminations. The breakthrough technology of the Lynx-CustomFit™ MPO meets the needs of the network for greater optical fiber density and addresses the connectivity demands for faster and easier terminations, upgrades, repairs and restorations, and significant cost savings required for today’s data center, enterprise network, outside plant, OEM, central office, and virtually any FTTx network application.
MTP® compatible, the Lynx-CustomFit™ MPO is the perfect solution for optical fiber ribbon and loose tube round cord and patch cord terminations. Like all Lynx-CustomFit™ fusion splice-on connectors (SC, LC, FC, and ST), the Lynx-CustomFit™ MPO allows the technician to make permanent terminations with the exact cable length for fast and easy installations and upgrades at the work site. The on-site customization facilitated by the Lynx-CustomFit™ connectivity method eliminates the risk of shorts and slack, repair lag, and logistic delays associated with pre-terminated cables and pigtails — making the Lynx-CustomFit™ MPO your best choice in customized fiber termination.
Product Downloads
Specifications
Property | SMF (Low Loss) | SMF (Standard) | MMF 0M1 | MMF 0M2 | MMF 0M3/4/5 |
---|---|---|---|---|---|
Polish Type | APC | APC | PC | PC | PC |
Housing Color | Yellow | Green | Beige | Black | Aqua |
Typical Insertion Loss | 0.10dB | 0.25dB | 0.10dB | 0.10dB | 0.10dB |
Maximum Insertion Loss | ≤ 0.35dB | ≤ 0.75dB | ≤ 0.35dB | ≤ 0.35dB | ≤ 0.35dB |
Return Loss | ≥ 60dB | ≥ 60dB | ≥ 20dB | ≥ 20dB | ≥ 20dB |
Operating Temperature | -40°C to +70°C (-40°F to +158°F) |
Ordering Information
MPO Splice-On Connectors
Instructions: Create a part number by using this character set & codes.
LYNX2-MPO12 [ 1 ] – [ 2 2 ] [ 3 3 ] – [ 4 4 4 4 4 ]
[ 1 ] – Connector Gender | [ 2 ] – Fiber | [ 3 ] – Fiber Type | [ 4 ] – Fiber Construction |
---|---|---|---|
M – Male F – Female | SM – Single Mode MM – Multimode | LL – SM Low Loss SL – SM Std Loss 01 – OM1 Fiber 03 – OM3/4 Fiber 02 – OM5 Fiber | RBN – 12f Ribbon RBC – 12f Ribbon w/ Jacket RC3.0 – 3.0 mm Cord |
Accessories
Item Number | Description |
---|---|
LYNX-CORDTOOL-2.0-3.0 | Lynx SOC, Cord Prep Tool, 2/3mm |
FA-03 | Fiber Arrangement and Ribbonization tool with a single fiber clamp for making shorter ribbons for use with Lynx-CustomFit™ MPOs. |
FTA-02 | Fiber Arrangement and and Ribbonization tool with clamps on both ends for making shorter ribbons with a single end, for Lynx-CustomFit™ MPO, or longer ribbons by using both ends for a ribbon-to-ribbon fusion splice. |
FAC-24 | Consumables for Fiber Arrangement Tool (Makes Approx. 30 Ribbons, for use with FA-03 or FTA-02) |
FHM-12-MPO-MTL | Lynx-MPO Ferrule Holder, Metal/Universal |
LYNX2-ATK2-MPO | Assembly Platform with Integrated Fiber Arrangement Tool |
LYNX2-HRT-1 | MPO Outer Housing Disassembly Tool |
LYNX2-TKU-MPO-RCATK | Lynx-CustomFit™ MPO Tool Kit with Assembly Platform (LYNX2-ATK2-MPO), Cord Tool (LYNX-CORDTOOL-2.0-3.0), Lynx-CustomFit™ Metal Ferrule holder (FHM-12-MPO-MTL), Fiber Optic Shears (FOS-01), Ribbonizing Glue and Pads (FAC-24), and Backpack (LYNX-BAG) |
LYNX2-TKU-MPO-RC | Lynx-CustomFit™ MPO Tool Kit with Fiber Arrangement and Ribbonization Tool (FA-03), Cord Tool (LYNX-CORDTOOL-2.0-3.0), Lynx-CustomFit™ Metal Ferrule holder (FHM-12-MPO-MTL), Fiber Optic Shears (FOS-01), Ribbonizing Glue and Pads (FAC-24), and Backpack (LYNX-BAG) |
TYPE-Q102-M12p-KIT-MPO | Quantum Mass Fusion Splicer, Cleaver, Thermal Jacket Remover, Spare Electrodes, 12ct Ribbon Fiber Holders, 250um Single Fiber Holders, V-Groove Brush, Power Cord, Manual, Hard Case, MPO Assembly Tool Kit, Consumable Kit, 2mm/3mm Cord Tool, Fiber Optic Shears, MPO Metal Holder |
How-To Videos
See All VideosFeatures
- Industry’s 1st MPO Field Installable, Fusion Splice-On Connector
- Cuts Time, Material, and Labor Costs
- Eliminates Logistical Delays of Pre-Engineered Cables
- Guide Pins for Precision Alignment (Male Only)
- Color Coded Housing
- Compatible with Optical Ribbon Fiber and Round Cord 12ct. Loose Tube
- Customizable Field Polarity Management
- EIA/TIA-604-5, FOCIS 5, IEC-61754-7 Compliant
