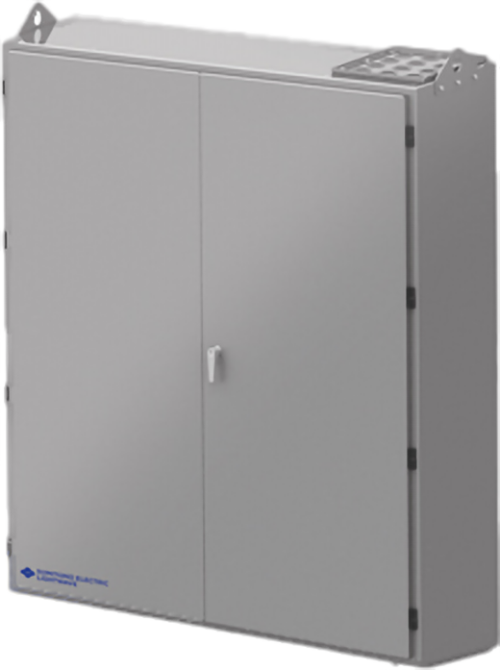

Ultra Hyperscale eXchange (U-HSX)
The Ultra Hyperscale eXchange (U-HSX) is a solution for clients employing high-fiber-count ribbon cables in their networks. The U-HSX serves as the demarcation point between outside plant ribbon cables and indoor distribution ribbon cables. The U-HSX is designed to be wall-mounted and has the capacity to store 3,456 mass splices for 41,472 fibers. Ports are available for up to 72 distribution cables of various sizes. The cabinet comes preassembled with cable management, splice tray modules, and mounting access points. An included work platform provides more than enough space to easily splice and hold all necessary splicing tools and accessories. The work platform has multiple mounting locations to conveniently access each splice tray.
The U-HSX is available factory outfitted with all 48, 864f capacity splice trays and the related tray accessories.
Specifications
Product Classification
| Property | Specification |
|---|---|
| Product Brand/Series | Hyperscale eXchange Cabinets |
| Growth Configuration | Fully Loaded |
| Mounting Type | Wall Mount |
| Environmental Space | Indoor |
Key Specification
| Property | Specification |
|---|---|
| Fiber Capacity | 41,472 Fibers (48 x 864f Splice Tray) |
| Splice Capacity | 48 = FTHFC-41K-SPLICETRAY | 864f Splice Tray |
| Splice Tray Capacity | 864 Fibers (72 x 12ct) |
| Integrated Work Platform | Yes |
| Lifting Plate | Yes |
| Lockable | Padlock |
| Removable Front Door | Yes |
| Removable Side Panels | Yes |
Cable Management
| Property | Specification |
|---|---|
| Cable Management | No |
| Cable Management Types | N/A |
| Cable Management Access | Front Access |
| Cable Entry/Exit Access Areas | 1 = Top; 1 = Bottom; 6 = Left Access Areas |
Regularity Compliance & Certification
| Property | Specification |
|---|---|
| RoHS | Yes |
| REACH | Yes |
Physical Characteristics
| Property | Specifications |
|---|---|
| Height | 72 in (1,829 mm) |
| Width | 56 in (1,423 mm) |
| Depth | 20 in (508 mm) |
| Color | Tele Grey |
| Material | Aluminum: Powder Coated |
Kitting Components
U-HSX Solution
| Components | Description | Quantity |
|---|---|---|
| U-HSX Cabinet | High Density Fiber Optic Exchange Cabinet, U-HSX Cabinet. | 1 |
| 864f Splice Tray | 864f Splice Tray Modules for U-HSX Cabinet, Holds up to 72 x 12ct Ribbon Splices. | 48 |
| 12 Cable Gland Shingle 1.875” Holes, Left/Right | High Density Cabinet Gland Shingle, 12 Gland Holes 1.875 inch (48 mm). Compatible with Left and Right of U-HSX Cabinet. | 6 |
| 12 Cable Gland Shingle 2” Holes, Top/Bottom | High Density Cabinet Gland Shingle, 12 Gland Holes 2 inch (51 mm). Compatible with Top and Bottom of U-HSX Cabinet. | 2 |
| Blank Shingle, Left/Right | High Density Cabinet Blank Shingle, Compatible with Left and Right of U-HSX Cabinet. | 6 |
| Blank Shingle, Top/Bottom | High Density Cabinet Blank Shingle, Compatible with Top and Bottom of U-HSX Cabinet. | 2 |
| U-HSX Work Platform | Work Platform for U-HSX Cabinet. 32.123 x 16.25 x 5 in (815.9 x 412.8 x 127 mm). | 1 |
| U-HSX Gland & Accessory Starter Kit | U-HSX Accessory Kit for One 3,456f Cable Entry to 1,728f. | 1 |
U-HSX Gland & Accessory Starter Kit
| Components | Quantity |
|---|---|
| 1.58 in (40 mm) Ribbon Splice Protectors Box. 250/Box. | 2 |
| 1.58 in (40 mm) Ribbon Splice Protectors Pack. 5/Pack. | 16 |
| 0.625 in x 75 ft (16 mm x 22.9 m) Ribbon Protection Sock. | 2 |
| 0.5 in x 15 ft (12.7 mm x 4.6 m) Hook & Loop Cable Tie. | 2 |
| 0.75 in x 30 ft (19 mm x 9.1 m) One-Piece Hook & Loop. | 80 |
| Strain Relief Gland for Cable Terminal, Range of 0.787 x 1.020 in (20 x 26 mm). | 4 |
| Strain Relief Gland for Cable Terminal, Range of 0.944 x 1.515 in (24 x 38.5 mm). | 4 |
Ordering Information
Instructions: Purchase the U-HSX Solution, and then add accessories and consumables as needed.
| Part Number | Description | Dimensions (W. x H. x D.) |
|---|---|---|
| FTHFC-41K-SK1 | Optical Cable Entrance Terminal U-HSX, Capacity of 41,472 Fibers, With Starter Kit. Contains All 48 (864f) Splice Trays As Well as Accessories for One 3,456F Cable Termination. | 56 x 72 x 20 in (1,422 x 1,829 x 508 mm) |
Accessories
| Part Number | Part Name | Description |
|---|---|---|
| FTHFC-41K-SPLICETRAY | 864f Splice Tray | Splice Tray Modules for U-HSX Only, Holds up to 72 x 12-Fiber. |
| FTHFC-ACK-3456-1728 | U-HSX Accessory Kit for One 3,456f Cable Entry to 1,728f | 58 pk. – 1.58 in (40 mm) Splice Protection Sleeves, 5 per Pack, Used for Splicing 2 to 12 Fibers. 1 ea. – Ribbon Protection Sock, 0.625 in x 75 ft (16 mm x 22.9 m) Spool. 1 ea. – Hook & Loop Cable Tie, 0.5 in x 30 ft (13 mm x 9.1 m). 1 ea. – One-Piece Hook & Loop, 0.75 in x 30 ft (19 mm x 9.1 m). 1 ea. – Trunk Gland for Optical Building Entrance Terminal, Range of 1.23 to 1.56 in (31.2 to 39.6 mm). 1 ea. – Gland Nut – U-HSX, M50, Brass. 2 ea. – Strain Relief Gland for Cable Terminal, Range of 0.787 to 1.02 in (20 to 26 mm). |
Entrance Frame Strain Relief Glands
| Part Number | Part Name | Description |
|---|---|---|
| FTHFC-GLANDKIT-0.709 | Strain Relief Gland, 0.354 to 0.709 inch | Strain Relief Gland for Cable Terminal, Range of 0.354 in to 0.709 in (9 mm to 18 mm). |
| FTHFC-GLANDKIT-0.827 | Strain Relief Gland, 0.433 to 0.827 inch | Strain Relief Gland for Cable Terminal, Range of 0.433 in to 0.827 in (11 mm to 21 mm). |
| FTHFC-GLAND-KIT-1.02 | Strain Relief Gland, 0.787 to 1.020 inch | Strain Relief Gland for Cable Terminal, Range of 0.787 in to 1.020 in (20 mm to 36 mm). |
| FTHFC-GLANDKIT-1.515 | Strain Relief Gland, 0.944 to 1.515 inch | Strain Relief Gland for Cable Terminal, Range of 0.944 in to 1.515 in (24 mm to 38.5 mm). |
Entrance Frame Consumables
| Part Number | Part Name | Description |
|---|---|---|
| FPS-6-5P | Ribbon Splice Protector | 1.58 in (40 mm) Ribbon Splice Protectors, 5 per Pack. |
| FTHFC-HL-3/4IN-30FT | One-Piece Hook & Loop | One-Piece Hook & Loop, 0.75 in x 30 ft (19 mm x 9.1 m). |
| FTHFC-HL-TIE-30FT | Hook & Loop Cable Tie | Hook & Loop Cable Tie, 0.5 in x 30 ft (13 mm x 9.1 m). |
| FTHFC-SOCK-5/8-75FT | Ribbon Protection Sock | Ribbon Protection Sock, 0.625 in x 75 ft (16 mm x 22.9 m) Spool. |
Field Furcation Kits
| Part Number | Part Name | Description |
|---|---|---|
| FFK-025KIT150F | Field Furcation Kit, 1/4 inch (6 mm Sleeve) | 1 ea. – 150 ft (45.7 m) of 0.25 in (6 mm) Flexible Sleeve Black, up to 192f Freeform™ or 144f Flat Ribbon/Sleeve. 2 ea. – 12 ft (3.7 m) Rolls of Rescue Tape. 1 ea. – 10 ft (3 m) Tube. |
| FFK-038KIT150F | Field Furcation Kit, 3/8 inch (10 mm Sleeve) | 1 ea. – 150 ft (45.7 m) of 0.375 in (10 mm) Flexible Sleeve Black, up to 288f Freeform Ribbon™/Sleeve. 2 ea. – 12 ft (3.7 m) Rolls of Rescue Tape. 1 ea. – 10 ft (3 m) Tube. |
Features
High Density and Huge Capacity
- Suitable to 1,728f and 3,456f Ultra High Fiber Count (UHFC) Cable Splicing
- Up to 12pcs of 3,456f Cables (41,472f) Can Be Terminated
- Splice Tray for 72pcs of 12F Ribbon Splices (864F/Tray). 48 Splice Trays Loaded.
- Includes All Necessary Accessories for the First Cable Installation
- Wall-Mountable
- Cable Entries at 3 Directions: UHFC Cable from Top and Bottom. Ribbon Cable from Side
Range of Shingles (Glands Sold Separately)
- Shingle Placement Top/Bottom & Left
- Eliminates Any Unwanted Dust from Entering
- Glands Offer Secure Cable Transition to Inside the Frame
Integrated Work Platform
- Multiple Mounting Positions to Conveniently Access Each Splice Tray
- Work Surface Covered in Non-Slip Material
Doors
- Removable
- Padlockable
- Includes Splice Tray Lid Holder
- Work Platform Stored Inside Door
Other Features & Benefits
- Lifting Plate Included to Move Cabinet. Can be Removed Once Cabinet is Secured
- RoHS & REACH Compliant
