Quantum-Ultra Ribbon

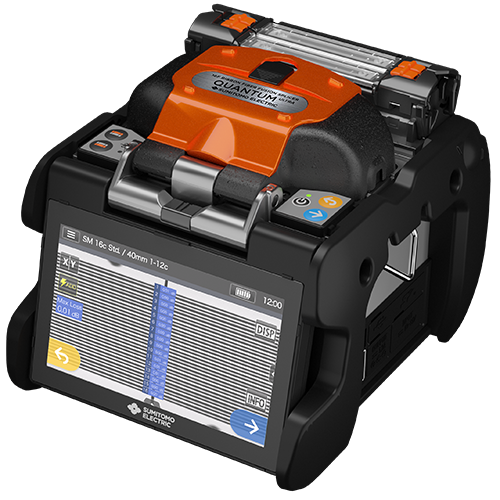

Sumitomo Electric announces the release of the Quantum-Ultra Ribbon – the next generation of future-proof ribbon fiber splicers. The new AI-enabled splicer with NanoTune™ technology is key to deploying next-generation hyper-scale networks. This future-proof machine has been designed to maximize work efficiency with state-of-the-art technology, including NanoTune™, E-ACAS, dual independent ovens, tool-free replaceable v-grooves, and special coatings. Using replaceable V-groove kits, the splicer becomes highly versatile adapting to fiber counts of up to 16 and 250μm and 200μm pitch ecosystems. The Quantum-Ultra Ribbon is ready to support any network, no matter the fiber count or pitch requirements.
Product Downloads
Specifications
| PROPERTY | SPECIFICATION |
|---|---|
| Monitor | 5.0″ touch screen color LCD display |
| Splice Time (Typical) | 11 sec (SM 12c Quick Mode), 14 sec (SM 12c Std. Mode, SM 16c Std. Mode) |
| Heating Time (Typical) | 28 sec (FPS-6 sleeves, 40 mm 1-12c Quick Mode) |
| Splice & Heat Cycles per Battery Full Charge | Approx 180 |
| Shock Resistance | Drop from 76 cm on 5 faces (excluding top face) |
| Water Resistance | Equivalent to IPx2 |
| Dust Resistance | Equivalent to IP5x |
Physical Characteristics
| PROPERTY | SPECIFICATION |
|---|---|
| Height | 5.1 in (130 mm) |
| Width | 5 in (128 mm) |
| Depth | 6 in (154 mm) |
| Weight (Without Battery) | 4 lb (1.8 kg) |
| Weight (With Battery) | 4.6 lb (2.1 kg) |
Ordering Information
| PART NUMBER | DESCRIPTION |
|---|---|
| QULTRA-RBN | Quantum-Ultra Ribbon Fiber Splicer configured for 12f-250μm pitch splicing. Kit includes Table Top Cleaver (FC-6R+), Thermal Jacket Remover (JR-7), Shipping Case, one set of 250um 12-Fiber Holders (FHM-12), one set of 250um Single Fiber Holders (FHS-025), one set of Spare Electrodes (ER-10), Cooling Tray, AC Interface/Battery Charger with Power Cord (PS-Q102), Battery Unit (BU-102), Fiber Protection Sleeves (FPS-6), V-groove Cleaning Brush (VGB-004), Cleaning Kit (FUS-CLN-KIT), USB Cable 2.0. |
Accessories
| Part Number | Description |
|---|---|
| SVG01-0100 | V-Groove Replacement Kit for single fiber splicing. Includes Spare Electrodes (ER-10), Set of Holders (FHS-09), and V-groove. |
| SVG01-1220 | V-Groove Replacement Kit for splicing 12-fiber, 200μm pitch. Includes Spare Electrodes (ER-10-200), Set of Holders (FHM-12N), and V-groove. |
| SVG01-1225 | V-Groove Replacement Kit for splicing 12-fiber, 250μm pitch. Includes Spare Electrodes (ER-10), Set of Holders (FHM-12), and V-groove. |
| SVG01-1620 | V-Groove Replacement Kit for splicing 16-fiber, 200μm pitch. Includes Spare Electrodes (ER-10), Set of Holders (FHM-16ND), and V-groove. |
| SVG01-1625 | V-Groove Replacement Kit for splicing 12-fiber, 250μm pitch. Includes Spare Electrodes (ER-10), Set of Holders (FHM-12), and V-groove. |
| FC-6R+ | Tabletop Automatic Blade Rotation Cleaver |
| JR-7 | Thermal Jacket Remover; Compatible with 200 & 250μm ribbon and single fiber |
| FHS-025 | Single Fiber 250μm Fiber Holder |
| FHM-12 | 12 Count Ribbon Holders for 250μm Pitch |
| FHM-12V | 12 Count Ribbon Holders with V-groove for 250μm Pitch |
| FHM-12N | 12 Count Ribbon Holders for 200μm Pitch |
| FHM-16N | 16 Count Ribbon Holders for 250μm Pitch |
| FHM-16ND | 16 Count Ribbon Holders for 200μm Pitch |
| PCH-12A | Pitch Conversion Holder from 200μm to 250μm Pitch, Optimized for Sumitomo Electric Freeform Ribbon |
| PCH-12V | Pitch Conversion Holder from 200μm to 250μm Pitch, Dedicated for partially bonded ribbon fibers |
| BU-102 | Battery Unit, QFS-Lithium Ion |
| PS-Q102 | AC Adapter/Power Supply, For Q102 Series Splicers, ADC-16 |
| PC-Q102 | Cord, AC Power, For Q102 Series Splicers (PC-AC2) |
| FUS-CLN-KIT-M | Cleaning Kit |
| FPS-6 | 1 to 16 Count 200μm Ribbon Fiber Protection Sleeves |
Features
Improving Splice Yield Through AI Technology
NanoTune™ automatically identifies optimal fusion-splicing conditions based on the fiber’s end face.
When a cleave error is detected, fibers are spliced with an optimized arc condition.
Enhanced-ACAS Creates Better Fiber Alignment
Auto-clamping adjustment system (ACAS) automatically optimizes the clamping pressure according to the number of fibers.
Additional horizontal fiber movement helps the fiber align properly on the high-precision V-Groove by removing dust and debris.
ACAS helps prevent fiber offset which increases splicing success rate and lower splice loss.
Simple Routine Cleaning
Buildup and dust adheres to V-grooves due to repeated splicing.
Cleaning the splicer is now easier with patented special coatings on the V-grooves and microscope lenses.
Additionally, the microscope lens has an anti-scratch and anti-fog coating that preserves image quality for superior splicing.
Tool-Free V-groove Replacement
Replaceable V-grooves allow for increased versatility required when splicing ribbon fiber.
V-groove is interchangeable between 200 and 250-micron pitch.
