OM5 Multi-Mode 50μm Fiber Bundles

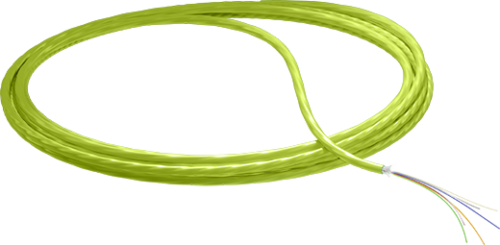

Sumitomo Electric Lightwave’s OM5 Multi-Mode 50μm Fiber Bundles are designed for installation into the FutureFLEX® Air-Blown Fiber® tube cable infrastructure. Operating wavelengths are 850 and 1300 nm. They can be used in indoor and outdoor installations.
Product Downloads
Specifications
Property | Specification |
---|---|
Fiber Bundle Jacket Material | Polyethylene Extruded Foam (PEF) |
Fiber Bundle Jacket Color | Lime |
Core Diameter | 50 μm |
Cladding Diameter | 125 μm |
Buffer / Acrylate Diameter | 250 μm |
Maximum Attenuation | 850 nm | < 2.4 dB/km 1300 nm | < 0.6 dB/km |
Fiber Capacity | 100 Gbps WDM | 150M 40 Gbps WDM | 440M 40 GBASE-SR4/100GBASE-SR4 | 200M |
Overfilled Modal Bandwidth (OFL) | 850 nm | ≥ 3500 MHz.km 953 nm | ≥ 1850 MHz.km 1300 nm | ≥ 500 MHz.km |
Effective Modal Bandwidth (EMB) | 850 nm | ≥ 4700 MHz.km 1300 nm | ≥ 2470 MHz.km |
Fiber Bundle Minimum Bend Radius | 1.5 in (38.1 mm) |
Ordering Information
Part Number | Fiber Type | Description | Outside Diameter | Max Weight | Max Length (600 Bobbin) | |
---|---|---|---|---|---|---|
IN | MM | LBS/KFT | FT | |||
FB06G5W | 50/125 OM5 | Multi-Mode 6-Fiber | 0.08 | 2.0 | 0.4 | 40,000 |
FB12G5W | 50/125 OM5 | Multi-Mode 12-Fiber | 0.08 | 2.0 | 3.4 | 39,000 |
FB24G5W | 50/125 OM5 | Multi-Mode 24-Fiber | 0.12 | 3.0 | 3.4 | 15,700 |
FB48G5W | 50/125 OM5 | Multi-Mode 48-Fiber | 0.15 | 3.7 | 5.6 | 10,900 |
Accessories
Sumitomo Recommended Procedures |
---|
SP-F04-002: ABF Fiber Bundle Specification Sheet |
SP-F04-006: Fiber Bundle Stripping Procedure |
SP-F04-025: Fiber Bundle Removal Procedure |
LFI Resource Portal |
---|
LFI Resource Portal | Sumitomo Electric Lightwave Corporation |
Features
- Up to 48 Fibers Per Bundle
- Industry Standard OM5
- Fibers Individually Color Coded Per TIA Standards
- Aqua Aerodynamic Jacket Allows Long Distance Blows
- Ripcords for Easy Bundle Entry
- UL Listed for Use with Fire-Rated Tube Cables
- Meets ICEA, TIA and UL standards
- Meets IEEE 802.3z Gigabit Ethernet Standard
- Gigabit Laser Optimized 50/125 Multimode
