Fiber Termination Accessories

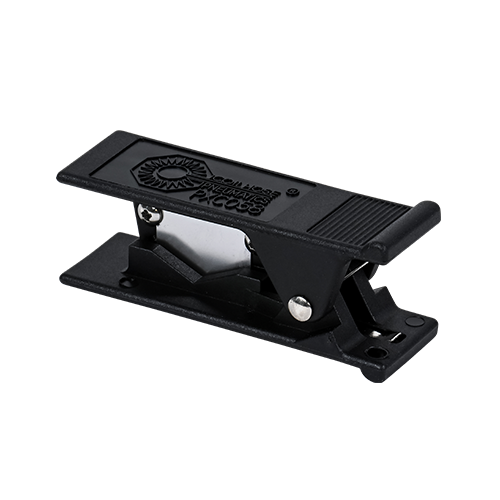

Tube Distribution Tools & Accessories are used for cutting, splicing or sealing tube cables. Available items include tubing cutters and replacement blades, tube cable cutters and replacement blades, splice kits and tube cable end seals.
Ordering Information
Part Number | Description |
---|---|
FT2MFB | Tapered Bushing (for 2-, 4-, or 6-fiber bundle) / Red |
FT3MFB | Tapered Bushing (for 12-, 18-, or 24 fiber bundle) / Black |
FT4MFB | Tapered Bushing (for 48, 72- fiber bundle) / Gray |
FT06FBK | 2, 4, & 6-fiber Bundle Breakout Kit (w/ 900 μm Tubing) |
FT12FBK | 12-fiber Bundle Breakout Kit (w/ 900 μm Tubing) |
FT24FBK | 18 & 24-fiber Bundle Breakout Kit (w/ 900 μm Tubing) |
FT48FBK | 48-fiber Bundle Breakout Kit (w/ 900 μm Tubing) |
FT48FBK-SU | 48-fiber Bundle Breakout Kit SM (w/ 3mm tubing for 4 x 12F MPO) |
FT72FBK | 72-fiber Bundle Breakout Kit (w/ 900 micron Tubing) |
FT72FBK-SU | 72-fiber Bundle Breakout Kit SM (w/ 3mm Tubing for 6 x 12F MPO) |
FPS-6 | Splice Protection Sleeves for use with mass/ribbon (2-12 fiber) splicing; 40mm length with glass ceramic strength member. GR Compliant. |
MA-2-KIT | Mid Span Ribbon Access Kit – For De-Riboonizing FB with Freeform Ribbon™ |
Simplex Pigtails
Part Number | Description |
---|---|
FT01SFC1M | FC Simplex 900μm Pigtail / Single-mode / 1 meter |
FT01SFA1M | FC-APC Simplex 900μm Pigtail / Single-mode / 1 meter |
FT01SLC1M | LC Simplex 900μm Pigtail / Single-mode / 1 meter |
FT01SSC1M | SC Simplex 900μm Pigtail / Single-mode / 1 meter |
FT01SSA1M | SC-APC Simplex 900μm Pigtail / Single-mode / 1 meter |
FT01SST1M | ST Simplex 900μm Pigtail / Single-mode / 1 meter |
FT016LC1M | LC Simplex 900μm Pigtail / Multi-mode 62.5 OM1 / 1 meter |
FT016SC1M | SC Simplex 900μm Pigtail / Multi-mode 62.5 OM1 / 1 meter |
FT016ST1M | ST Simplex 900μm Pigtail / Multi-mode 62.5 OM1 / 1 meter |
FT01MLC1M | LC Simplex 900μm Pigtail / Multi-mode 50 OM2 / 1 meter |
FT01MSC1M | SC Simplex 900μm Pigtail / Multi-mode 50 OM2 / 1 meter |
FT01MST1M | ST Simplex 900μm Pigtail / Multi-mode 50 OM2 / 1 meter |
FT013LC1M | LC Simplex 900μm Pigtail / Multi-mode 50 OM3 (300M) / 1 meter |
FT013SC1M | SC Simplex 900μm Pigtail / Multi-mode 50 OM3 (300M) / 1 meter |
FT015LC1M | LC Simplex 900μm Pigtail / Multi-mode 50 OM4 (550M) / 1 meter |
FT015SC1M | SC Simplex 900μm Pigtail / Multi-mode 50 OM4 (550M) / 1 meter |
6 Fiber Pigtails
Part Number | Description |
---|---|
FT06SFA2M | FC-APC / 6 Fiber 900 μm Pigtail / Single-mode / 2 meter |
FT06SFC2M | FC / 6 Fiber 900μm Pigtail / Single-mode / 2 meter |
FT06SLC2M | LC / 6 Fiber 900μm Pigtail / Single-mode / 2 meter |
FT06SSC2M | SC / 6 Fiber 900μm Pigtail / Single-mode / 2 meter |
FT06SSA2M | SC-APC / 6 Fiber 900μm Pigtail / Single-mode / 2 meter |
FT06SST2M | ST / 6 Fiber 900μm Pigtail / Single-mode / 2 meter |
FT066LC2M | LC / 6 Fiber 900μm Pigtail / Multi-mode 62.5 OM1 / 2 meter |
FT066SC2M | SC / 6 Fiber 900μm Pigtail / Multi-mode 62.5 OM1 / 2 meter |
FT066ST2M | ST / 6 Fiber 900μm Pigtail / Multi-mode 62.5 OM1 / 2 meter |
FT06MLC2M | LC / 6 Fiber 900μm Pigtail / Multi-mode 50 OM2 / 2 meter |
FT06MSC2M | SC / 6 Fiber 900μm Pigtail / Multi-mode 50 OM2 / 2 meter |
FT06MST2M | ST / 6 Fiber 900μm Pigtail / Multi-mode 50 OM2 / 2 meter |
FT063LC2M | LC / 6 Fiber 900μm Pigtail / Multi-mode 50 OM3 (300M) / 2 meter |
FT063SC2M | SC / 6 Fiber 900μm Pigtail / Multi-mode 50 OM3 (300M) / 2 meter |
FT065LC2M | LC / 6 Fiber 900μm Pigtail / Multi-mode 50 OM4 (550M) / 2 meter |
FT065SC2M | SC / 6 Fiber 900μm Pigtail / Multi-mode 50 OM4 (550M) / 2 meter |
12 Fiber Pigtails
Part Number | Description |
---|---|
FT12SFA2M | FC-APC / 12 Fiber 900μm Pigtail / Single-mode / 2 meter |
FT12SLC2M | LC / 12 Fiber 900μm Pigtail / Single-mode / 2 meter |
FT12SSC2M | SC / 12 Fiber 900μm Pigtail / Single-mode / 2 meter |
FT12SSA2M | SC-APC / 12 Fiber 900μm Pigtail / Single-mode / 2 meter |
FT12SST2M | ST / 12 Fiber 900μm Pigtail / Single-mode / 2 meter |
FT126LC2M | LC / 12 Fiber 900μm Pigtail / Multi-mode 62.5 OM1 / 2 meter |
FT126SC2M | SC / 12 Fiber 900μm Pigtail / Multi-mode 62.5 OM1 / 2 meter |
FT126ST2M | ST / 12 Fiber 900μm Pigtail / Multi-mode 62.5 OM1 / 2 meter |
FT12MLC2M | LC / 12 Fiber 900μm Pigtail / Multi-mode 50 OM2 / 2 meter |
FT12MSC2M | SC / 12 Fiber 900μm Pigtail / Multi-mode 50 OM2 / 2 meter |
FT12MST2M | ST / 12 Fiber 900μm Pigtail / Multi-mode 50 OM2 / 2 meter |
FT123LC2M | LC / 12 Fiber 900μm Pigtail / Multi-mode 50 OM3 (300M) / 2 meter |
FT123SC2M | SC / 12 Fiber 900μm Pigtail / Multi-mode 50 OM3 (300M) / 2 meter |
FT125LC2M | LC / 12 Fiber 900μm Pigtail / Multi-mode 50 OM4 (550M) / 2 meter |
FT125SC2M | SC / 12 Fiber 900μm Pigtail / Multi-mode 50 OM4 (550M) / 2 meter |
FT245SC2M | SC / 24 Fiber 900μm Pigtail / Multi-mode 50 OM4 (550M) / 2 meter |
24 Fiber Pigtails
Part Number | Description |
---|---|
FT24SFC2M | FC / 24 Fiber 900μm Pigtail / Single-mode / 2 meter |
FT24SFA2M | FC-APC / 24 Fiber 900μm Pigtail / Single-mode / 2 meter |
FT24SLC2M | LC / 24 Fiber 900μm Pigtail / Single-mode / 2 meter |
FT24SSC2M | SC / 24 Fiber 900μm Pigtail / Single-mode / 2 meter |
FT24SSA2M | SC-APC / 24 Fiber 900μm Pigtail / Single-mode / 2 meter |
FT24SST2M | ST / 24 Fiber 900μm Pigtail / Single-mode / 2 meter |
FT246LC2M | LC / 24 Fiber 900μm Pigtail / Multi-mode 62.5 OM1 / 2 meter |
FT246SC2M | SC / 24 Fiber 900μm Pigtail / Multi-mode 62.5 OM1 / 2 meter |
FT246ST2M | ST / 24 Fiber 900μm Pigtail / Multi-mode 62.5 OM1 / 2 meter |
FT24MLC2M | LC / 24 Fiber 900μm Pigtail / Multi-mode 50 OM2 / 2 meter |
FT24MSC2M | SC / 24 Fiber 900μm Pigtail / Multi-mode 50 OM2 / 2 meter |
FT24MST2M | ST / 24 Fiber 900μm Pigtail / Multi-mode 50 OM2 / 2 meter |
FT243LC2M | LC / 24 Fiber 900μm Pigtail / Multi-mode 50 OM3 (300M) / 2 meter |
FT243SC2M | SC / 24 Fiber 900μm Pigtail / Multi-mode 50 OM3 (300M) / 2 meter |
FT245LC2M | LC / 24 Fiber 900μm Pigtail / Multi-mode 50 OM4 (550M) / 2 meter |
FT245SC2M | SC / 24 Fiber 900μm Pigtail / Multi-mode 50 OM4 (550M) / 2 meter |
Features
- Accessory items include splice trays, tapered bushings, interconnect panels, pigtails, and breakout kits
- Pigtails are available in various lengths with LC, SC, MTRJ, ST, FC, and other connectors
