Freeform Ribbon™ Conventional OSP All-Dielectric Slotted Core Cables

Freeform Ribbon™ Conventional OSP All-Dielectric Slotted Core Cables

Sumitomo Electric Lightwaves’s Freeform Ribbon™ Conventional Outside Plant (OSP) All-Dielectric Slotted Core Cables feature an all-dielectric design requiring no grounding or bonding, and the patented 12-fiber pliable Freeform Ribbon™ constructed of 250 μm color-coded optical fibers.

Freeform Ribbon™ enables high fiber density within a small cable diameter which in turn helps with limited duct space. The 12-fiber ribbons may be spliced to a conventional ribbon, pliable ribbon, or non-ribbonized (single) fibers, as well as connectorization with both MPO and all industry standard connectors. The non-preferential bend axis allows for easy installation in space-constrained areas.

Find a Distributor

Product Downloads

Product Information

Download

Specifications

GENERAL
ApplicationOutside Plant
Jacket ColorBlack PE
Cable StructureSlotted Core
Ribbon TypeFreeform Ribbon™
Metallic ElementsNo Bonding/Grounding Required
FIBER
Fiber TypePureAccess® G.657.A1 Bend Insensitive Single-Mode Fiber
Fiber Attenuation GradesStandard Single-Mode
Attenuation1310 nm | 0.40 dB/km
1550 nm | 0.25 dB/km
BEND RADIUS
During Installation20 x Cable OD
After Installation10 x Cable OD
MECHANICAL CHARACTERISTICS
Max. Tensile Load (During Installation)600 lb (2,670 N)
Max. Recommended Service Load180 lb (800 N)
Compression Resistance124 lb/in (220 N/cm)
TEMPERATURE RANGE
Operation-40 to +158°F (-40 to +70°C)
Storage & Shipping-40 to +158°F (-40 to +70°C)
Installation+14 to +140°F (-10 to +60°C)
STANDARDS & COMPLIANCE
StandardsReferencing Telcordia GR-20
Regularity ComplianceRoHS, REACH, Conflict Minerals, Proposition 65

Ordering Information

PART NUMBERFIBER SIZEFIBER COUNTNOMINAL CABLE OD
(in | mm)		NOMINAL WEIGHT
(lb/kft | kg/km)		NO. OF SLOTSFIBER PER SLOTSTRANDING
DRSC-OSP6-SA00144-250-ADEROL250 μm144f0.67 (17.0)134.4 (200.0)624fSZ
DRSC-OSP6-SA00288-250-ADEROL250 μm288f0.67 (17.0)141.1 (220.0)648fSZ
DRSC-OSP6-SA00432-250-ADEROL250 μm432f0.79 (20.0)178.1 (265.0)672fSZ
DRSC-OSP6-SA00864-250-ADEROL250 μm864f0.93 (23.5)245.3 (365.0)6144fSZ
DRSC-OSP6-SA01728-250-ADEROL250 μm1,728f1.16 (29.5)295.7 (440.0)6288fSZ

Accessories

PART NUMBERDESCRIPTION
CRC-001Cable Ring Tool, 0.25 – 1.625 in (4 – 28 mm) for End/Mid-Span Access
CSC-002Cable Slit Tool for End/Mid-Span Access

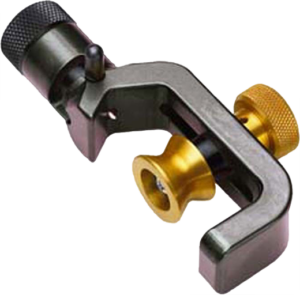

ACS-01Armored Cable Slit & Ring Tool, 0.315 – 1.125 in (8 – 28.6 mm) for End/Mid-Span Access
ACS-01-BLADEReplacement Blade for ACS-01
FRSJ-01Freeform Ribbon™ Separation Tool Kit
MA-2-REFILLRibbon Matrix Remover with Board & Double Sided Tape (Qty. 25)
JR-7Heated Jacket Remover with AC Adapter & Battery for Single Fibers & Up to 12-Fiber Ribbons
JR-M03Jacket Remover for 250 μm, 900 μm, and Up to 3 mm Jacketed Single Fibers
LYNX-SHEARSLynx-CustomFit™ Aramid Shears

Features

  • Patented Pliable Freeform Ribbon™ Color-Coded Optical Fibers
  • Sumitomo Electric PureAccess® Bend Insensitive Single Mode Fiber G.657.A1
  • Gel Free Water Blocking Tape
  • Meets Requirements of IEC 60794-3-19
  • Tested Per Applicable Requirements of Telcordia GR-20

Benefits

  • Quick and Easy Fiber Identification
  • Robust in Harsh Installation Environments
  • High Fiber Density Maximizes Duct Space
  • Compatible with Mass and Single Fiber Fusion Splicers, Splice-On Connectors & Hardware
  • Slotted Core Provides Easier Grouping of Fibers
