Couplings & Accessories
Accessory items are used for cutting, splicing or sealing tube cables. Available items include tubing cutters and replacement blades, tube cable cutters and replacement blades, splice kits and tube cable end seals.
Product Downloads
Ordering Information
Part Number | Description |
---|---|
BETC001 | Tube Cutter |
BETC00B | Replacement Blade for Tube Cutter |
BETL03 | Tube Cable Cutter (up to 32 mm) Green |
BETL64 | Tube Cable Cutter (up to 64 mm) Blue |
BE08CTB | BB Catcher with 8 mm fitting |
BEPT0S | Pressure Test Switch |
DE00SPL | Tube Cable Splice Kit (for 2 or 4-Tube Cables) |
DE01SPL | Tube Cable Splice Kit (for 7 or 12-Tube Cables) |
DE02SPL | Tube Cable Splice Kit (for 19-Tube Cables) |
DE03SPL | Tube Cable Splice Kit (for 24-Tube Cables) |
DE04HS1 | Cable End Seal (Heat Shrink), for TC02 and TC04 Unarmored Tube Cables |
DE07HS1 | Cable End Seal (Heat Shrink) for TC02 and TC04 Armored Tube Cables, TC07 Unarmored and Armored Tube Cables, TC12 Unarmored Tube Cables |
DE19HS1 | Cable End Seal (Heat Shrink) for TC12 Armored Tube Cables, TC19 Unarmored Tube Cables |
DE19HS2 | Cable End Seal (Heat Shrink) for TC19 Armored Tube Cables, TC24 Tube Cables |

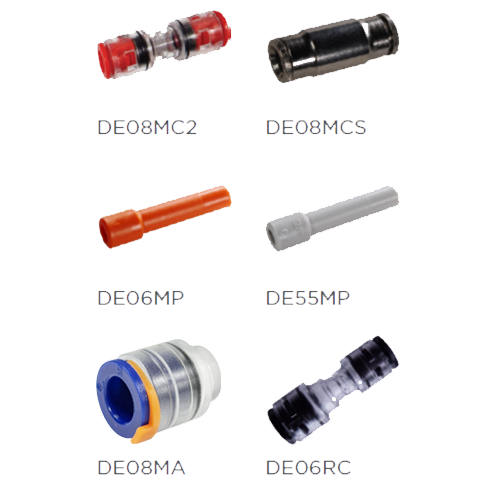

Couplings
Part Number | Description | Color | UOM |
---|---|---|---|
DE08MC2 | Straight Tube Coupling (8 mm) for Non-Hazardous Areas | Clear/Red | 1 ea.* |
DE08MCS | Nickel-plated Brass Coupling for Hazardous Areas | N/A | 1 ea. |
DE06MP | Tube Plug (6 mm) for use in all tubes except Plenum | Orange | 1 ea.* |
DE55MP | 5.5 mm OD tube plug for use in Plenum tubes | Gray | 1 ea.* |
DE08MA | Tube End Cap (8 mm) | Gray | 1 ea.* |
DE06RC | 8 x 6 mm Reducing Coupling | Clear/Black | 1 ea.* |
DE08MT | Tee Coupling (8 mm) | Black/Blue | 1 ea.* |
DE08MB | Bulkhead Tube Coupling (8 mm) | N/A | 1 ea.* |
DE08RC | 8.5mm x 8.0mm Reducing Coupling | Clear/Red | 1 ea.* |
DE08GBC | 0.32 in (8 mm) Gas Blocking Coupling for Use in Class 1 – Div. 1 & 2 areas | Black & Yellow | 1 ea.* |
Features
- Tube cutter smoothly cuts all FutureFLEX® tube types
- Tube cable cutter cuts tube cables up to 2 inches in diameter
- Tube cable end seals available for 2 and 4 tubes, 7 tubes, and 19 tubes
- Splice kits provide all materials necessary to complete a permanent tube cable splice with a water-resistant protective barrier around the splice
