Cable Breakout Kits for Ribbon (12f to 288f)

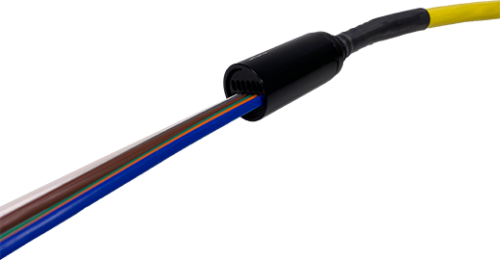

Sumitomo Electric Lightwave’s Breakout kits are designed to help manage, protect & split 12 to 288 fiber cables using 12 fiber standard flat, or pliable ribbons including Sumitomo Electric Lightwave’s Freeform Ribbon™ through colored oval shaped tubes. Following simple instructions, the breakout kit will firmly secure a cable to protect routing fibers to any needed splice tray or enclosure for splicing & transitioning to connectivity ports.
Specifications
Cable Breakout Kits Crossover Guide
Box Transition
| Part Number | Description | Compatible Part Number |
|---|---|---|
| FOR-012-0 | No Changes | FOR-012-O |
| FOR-024-0 | No Changes | FOR-024-O |
Round/Tube Transition
| Part Number | Description | Compatible Part Number |
|---|---|---|
| FOR-048-O | Updated | FOR-048-O-1 |
| FOR-072-O | Updated | FOR-072-O-1 |
| FOR-096-O | Updated | FOR-096-O-1 |
| FOR-096-3 | Updated | FOR-096-O-1 |
| FOR-144-O | Updated | FOR-144-O-1 |
| FOR-288-O (Freeform or Pliable Ribbon-Based 288-ct Cables Only) | Updated | FOR-288-O-1 |
| FOR-288-O (Flat-Ribbon-Based 288-ct Cables Only) | No Changes | FOR-288-O |
Kitting Components
Round/Tube Transition
| Part Number | Components |
|---|---|

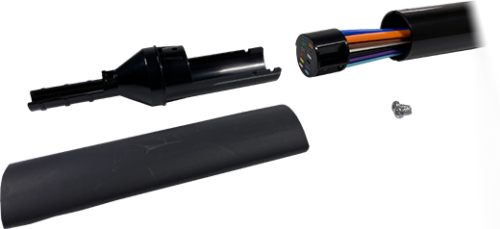

| FOR-048-O-1 | Snap-In CordGrip M4838, Sleeve, Base w/ Furcation Tubing, Cable OD Build-Up Sleeve (For Use with Undersized Cable Diameters Only) |
| FOR-072-O-1 | Snap-In CordGrip M4838, Sleeve, Base w/ Furcation Tubing, Cable OD Build-Up Sleeve (For Use with Undersized Cable Diameters Only) |
| FOR-096-O-1 | Snap-In CordGrip M4836, Sleeve, Base w/ Furcation Tubing, Cable OD Build-Up Sleeve (For Use with Undersized Cable Diameters Only) |
| FOR-144-O-1 | Snap-In CordGrip M4836, Sleeve, Base w/ Furcation Tubing, Cable OD Build-Up Sleeve (For Use with Undersized Cable Diameters Only) |

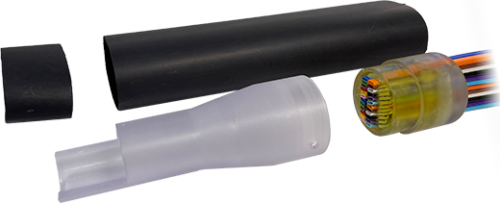

| FOR-288-O-1 | Snap-In CordGrip M4836, Sleeve, Base w/ Furcation Tubing, (24) Heat Shrink Tubes, Cable OD Build-Up Sleeve (For Use with Undersized Cable Diameters Only) |
Ordering Information
Box Transition
| Part Number | Fiber Cap. | Tubing Port Qty. | Tubing Length |
|---|---|---|---|
| FOR-012-0 | 12f | 1 Port | 3.3 ft (1 m) |
| FOR-024-0 | 24f | 2 Ports | 3.3 ft (1 m) |
| FOR-048-0-BX | 48f | 4 Ports | 3.3 ft (1 m) |
Round/Tube Transition
| Part Number | Fiber Cap. | Tubing Port Qty. | Tube Length | Minimum Cable Diameter | Maximum Cable Diameter |
|---|---|---|---|---|---|
| FOR-048-0-1 | 48f | 4 Ports | 3.3 ft (1 m) | 0.385 in (9.8 mm) | 0.490 in (12.4 mm) |
| FOR-072-0-1 | 72f | 6 Ports | 3.3 ft (1 m) | 0.385 in (9.8 mm) | 0.490 in (12.4 mm) |
| FOR-096-0-1 | 96f | 8 Ports | 3.3 ft (1 m) | 0.435 in (11.0 mm) | 0.705 in (17.9 mm) |
| FOR-144-0-1 | 144f | 12 Ports | 3.3 ft (1 m) | 0.435 in (11.0 mm) | 0.705 in (17.9 mm) |
| FOR-288-0-1 (Freeform or Pliable Ribbon-Based 288-ct Cables Only) | 288f | 24 Ports | 3.3 ft (1 m) | 0.435 in (11.0 mm) | 0.705 in (17.9 mm) |
| FOR-288-0 (Flat-Ribbon-Based 288-ct Cables Only) | 288f | 24 Ports | 3.3 ft (1 m) | 0.435 in (11.0 mm) | 0.705 in (17.9 mm) |
Features
- Easy to Install & Use
- Only a few components included
- Intuitive Tubes & Color Coding
- Fits any standard flat ribbon or pliable ribbon structure including Sumitomo’s Freeform Ribbon™
- Protects fiber from damage
- Tubing length of 3.3 ft (1 m)
- Other Features & Benefits
- Great for routing to splice trays & PrecisionFlex® FOX Cassettes or other enclosures
- RoHS Compliant
