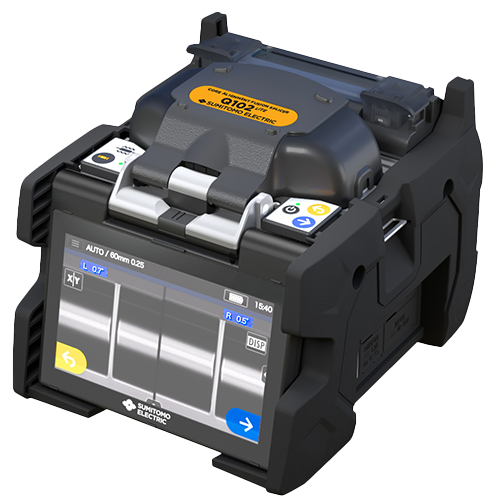

Q102-LITE

SEL’s new Q102-LITE automatic adaptive core fusion splicer is the latest enhancement to its fusion splicer portfolio. Compact, lightweight, and faster than ever, the Q102-LITE boasts a 6-second splice time in SM Quick Mode and 15-second heat shrink time. Power through with ease with a splicer built for field toughness.

Find a Distributor

Product Information

Download

Specifications

Optical Fiber Requirements

Property	Specifications
Material	Silica Glass
Profile Type	SMF (G.652); MMF (G.651); DSF (G.653); NZDSF (G.655); BIF (G.657)
Fiber Count	1f
Cladding Dia.	80 – 150 μm
Coating Dia.	100 – 1,000 μm
Cleave Length	0.20 – 0.63 in (5 – 16 mm)

Q102-LITE Standard Components

Components
Q102-LITE Fusion Splicer
Hard Transit Case
Battery Unit (BU-102)
AC Adapter & Power Cord
Cleaning Kit (FUS-CLN-KIT)
One Pack Splice Protection Sleeves (FPS-1)
Pair of Spare Electrodes (ER-10)
Jacket Remover (JR-M03)
Fiber Clamps

Ordering Information

Part Number	Components
Q102LITE-CORE-KIT-6Rp	Q102-LITE Standard Components Auto-Rotating Fiber Optic Cleaver (FC-6R+)
Q102LITE-CORE-KIT-6RpFH	Q102-LITE Standard Components Auto-Rotating Fiber Optic Cleaver (FC-6R+) Pair of 250μm Single-fiber Holders (FHS-025) Pair of 900μm Single-fiber Holders (FHS-09) Pair of 900μm Loose Buffer Fiber Holders (FHS-025-LB5-SET)
Q102LITE-CORE-KIT-6SpFH	Q102-LITE Standard Components Auto-Rotating Fiber Optic Cleaver (FC-6S+) Pair of 250μm Single-fiber Holders (FHS-025) Pair of 900μm Single-fiber Holders (FHS-09) Pair of 900μm Loose Buffer Fiber Holders (FHS-025-LB5-SET)
Q102LITE-CORE-KIT-8R	Q102-LITE Standard Components Auto-Rotating Handheld Fiber Optic Cleaver (FC-8R-F)
Q102LITE-CORE-KIT-8RFH	Q102-LITE Standard Components Auto-Rotating Handheld Fiber Optic Cleaver (FC-8R-F) Pair of 250μm Single-fiber Holders (FHS-025) Pair of 900μm Single-fiber Holders (FHS-09) Pair of 900μm Loose Buffer Fiber Holders (FHS-025-LB5-SET)
