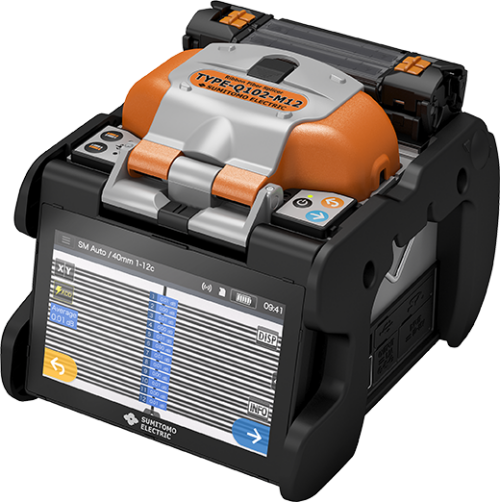

Q102-M12
Sumitomo Electric Lightwave announces its newest addition to the industry-leading Quantum® Fusion Splicer portfolio. Sumitomo Electric’s new Type-Q102-M12 is accompanied with new features and benefits capable of deploying next generation hyperscale networks.
Consistent and quality low-loss splicing, the compatibility with Lynx-CustomFit™ 2 Splice-On Connecters, and Sumitomo Electric’s patented dual independent ovens make this fusion splicer a preferred choice for extensive and diverse optical fiber networks. The new ribbon fiber splicer is capable of handling 250 μm and 200 μm ecosystems and is accompanied by SEL’s 24/7 fusion splicer technical support and a three-year warranty.
Product Downloads
Specifications
| Property | Specification |
|---|---|
| Monitor | 5.0″ touch screen color LCD display |
| Splice Time (Typical) | 11 sec (SM 12c Quick Mode), 14 sec (SM 12c Std. Mode) |
| Heating Time (Typical) | 35 sec (FPS-6 sleeves, 40 mm 1-12c Quick Mode) |
| Shock Resistance | Drop from 76 cm on 5 faces (excluding top face) |
| Water Resistance | Equivalent to IPx2 |
| Dust Resistance | Equivalent to IP5x |
Physical Characteristics
| Property | Specification |
|---|---|
| Height | 5.1 in (130 mm) |
| Width | 5 in (128 mm) |
| Depth | 6 in (154 mm) |
| Weight (Without Battery) | 4 lb (1.8 kg) |
| Weight (With Battery) | 4.6 lb (2.1 kg) |
Ordering Information
Fusion Splice Kits
| Part Number | Description |
|---|---|
| TYPE-Q102-M12-KIT-6RM1 | TYPE Q102-M12 Quantum Compact Mass Fusion Splicer Kit with Dual Built-in Heat Shrink Ovens, includes Mass Fiber Cleaver (FC-6RM- C), Heated Fiber Stripper (JR-6+), Splice Protection Sleeves (FPS-6 type), pair of 12-Fiber Holders (FHM-12V), pair of 250um single fiber holders (FHS-025), Shipping Case, one set of Spare Electrodes (ER-10), Cooling Tray, AC Interface/Battery Charger with Power Cord, Battery Unit (BU-102), Cleaning Kit (FUS-CLN- KIT) |
| TYPE-Q102-M12-KIT-6RM2 | TYPE Q102-M12 Quantum Compact Mass Fusion Splicer Kit with Dual Built-in Heat Shrink Ovens, includes Mass Fiber Cleaver (FC-6RM- C), Heated Fiber Stripper (JR-6+), Splice Protection Sleeves (FPS-6 type), pair of 12-Fiber Holders (FHM-12V), pair of 250um single fiber holders (FHS-025), Shipping Case, one set of Spare Electrodes (ER-10), Cooling Tray, AC Interface/Battery Charger with Power Cord, Battery Unit (BU-102), Ribbonizing Tool and Consumable Kit, Cleaning Kit (FUS-CLN-KIT) |
| TYPE-Q102-M12-KIT-8RM1 | TYPE Q102-M12 Quantum Compact Mass Fusion Splicer Kit with Dual Built-in Heat Shrink Ovens, includes Mass Fiber Cleaver (FC-8R), Heated Fiber Stripper (JR-6+), Splice Protection Sleeves (FPS-6 type), pair of 12-Fiber Holders (FHM-12V), pair of 250um single fiber holders (FHS-025), Shipping Case, one set of Spare Electrodes (ER-10), Cooling Tray, AC Interface/Battery Charger with Power Cord, Battery Unit (BU-102), Cleaning Kit (FUS-CLN-KIT) |
| TYPE-Q102-M12-KIT-8RM2 | TYPE Q102-M12 Quantum Compact Mass Fusion Splicer Kit with Dual Built-in Heat Shrink Ovens, includes Mass Fiber Cleaver (FC-8R), Heated Fiber Stripper (JR-6+), Splice Protection Sleeves (FPS-6 type), pair of 12-Fiber Holders (FHM-12V), pair of 250um single fiber holders (FHS-025), Shipping Case, one set of Spare Electrodes (ER-10), Cooling Tray, AC Interface/Battery Charger with Power Cord, Battery Unit (BU-102), Ribbonizing Tool and Consumable Kit, Cleaning Kit (FUS-CLN-KIT) |
| TYPE-Q102-M12-KIT-MPO1 | TYPE Q102-M12 Quantum Compact Mass Fusion Splicer Kit with Dual Built-in Heat Shrink Ovens, includes Mass Fiber Cleaver (FC-6RM- C), Heated Fiber Stripper (JR-6+), Splice Protection Sleeves (FPS-6 type), pair of 12-Fiber Holders (FHM-12V), pair of 250um single fiber holders (FHS-025), Shipping Case, one set of Spare Electrodes (ER-10), Cooling Tray, AC Interface/Battery Charger with Power Cord, Lynx2 MPO Assembly Tool System, Consumable Kit, Lynx Shears, 2mm/3mm Cord Tool, Lynx MPO Metal Holder, Cleaning Kit (FUS-CLN-KIT) |
| TYPE-Q102-M12-KIT-MPO2 | TYPE Q102-M12 Quantum Compact Mass Fusion Splicer Kit with Dual Built-in Heat Shrink Ovens, includes Mass Fiber Cleaver (FC-6RM- C), Heated Fiber Stripper (JR-6+), Splice Protection Sleeves (FPS-6 type), pair of 12-Fiber Holders (FHM-12V), pair of 250um single fiber holders (FHS-025), Shipping Case, one set of Spare Electrodes (ER-10), Cooling Tray, AC Interface/Battery Charger with Power Cord, Battery Unit (BU-102), Lynx2 MPO Assembly Tool System, Consumable Kit, Lynx Shears, 2mm/3mm Cord Tool, Lynx MPO Metal Holder, Cleaning Kit (FUS-CLN-KIT) |
| TYPE-Q102-M12-KIT-6RM1PCH | TYPE Q102-M12 Quantum Compact Mass Fusion Splicer Kit with Dual Built-in Heat Shrink Ovens, includes Mass Fiber Cleaver (FC- 6RM-C), Heated Fiber Stripper (JR-6+), Splice Protection Sleeves (FPS-6 type), pair of 12-Fiber Holders (FHM-12V), pair of 250um single fiber holders (FHS-025), Pair of Pitch Conversion Holders (FHM-PCH-12), Shipping Case, one set of Spare Electrodes (ER-10), Cooling Tray, AC Interface/Battery Charger with Power Cord, Battery Unit (BU-102), Cleaning Kit (FUS-CLN-KIT-M) |
| TYPE-Q102-M12-KIT-6RM3 | TYPE Q102-M12 Quantum Compact Mass Fusion Splicer Kit with Dual Built-in Heat Shrink Ovens, includes Mass Fiber Cleaver (FC- 6RM-C), Heated Fiber Stripper (JR-6+), Splice Protection Sleeves (FPS-6 type), pair of 12-Fiber Holders (FHM-12V), pair of 250um single fiber holders (FHS-025), Shipping Case, one set of Spare Electrodes (ER-10), Cooling Tray, AC Interface/Battery Charger with Power Cord, Battery Unit (BU-102), Glueless Ribbonizing Tool (OFA-01), Cleaning Kit (FUS-CLN-KIT-M) |
| TYPE-Q102-M12-KIT-8RM3 | TYPE Q102-M12 Quantum Compact Mass Fusion Splicer Kit with Dual Built-in Heat Shrink Ovens, includes Mass Fiber Cleaver (FC- 8R), Heated Fiber Stripper (JR-6+), Splice Protection Sleeves (FPS-6 type), pair of 12-Fiber Holders (FHM-12V), pair of 250um single fiber holders (FHS-025), Shipping Case, one set of Spare Electrodes (ER-10), Cooling Tray, AC Interface/Battery Charger with Power Cord, Battery Unit (BU-102), Glueless Ribbonizing Tool (OFA-01), Cleaning Kit (FUS-CLN-KIT-M) |
Accessories
| Part Number | Description |
|---|---|
| FC-8R | Cleaver, Handheld w/ Auto Blade Adjust |
| JR-6+ | Jacket Remover,Plus, Heated, DC-in, Lithium ion Battery |
| FHS-025 | Holder, 250um Fiber, Single, T25e & Mass |
| FHM-12 | Holders, 12ct. Ribbon Fiber,Mass Splicer |
| BU-102 | Battery Unit,QFS-Lithium Ion, Q102, Type-56 Splicer, BU-16 |
| PS-Q102 | AC Adapter/Power Supply,Type-Q102, ADC-16 |
| PC-Q102 | Cord,AC Power,For Q102 Model (PC-AC2) |
| SC-Q102 | Case, Shipping for Type-Q102 Splicer Model, CC-72 |
| TQ102-CORDPACK | Pack, Acc includes ER-10,CoolingTray, USB, Hand Strap, Manuals |
| FUS-CLN-KIT | Clean, Kit for Fusion Splicer Models |
| FPS-6-5P | Sleeves, Protection, Mass, 5/Pack |
Features
- Patented Dual Independent Ovens
- Splice time of 11 seconds/Heat time 35 seconds
- Auto Clamping Adjustment System
- High Resolution Touch Screen Display
- Improved User Interfac
