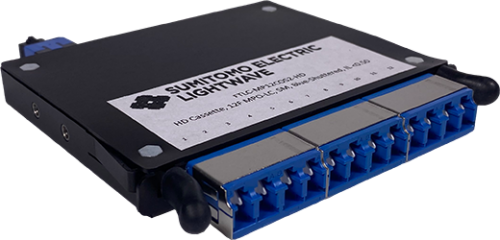

PrecisionFlex® HD Cassettes

PrecisionFlex® HD Cassettes are high density cassette solutions for use with Sumitomo Electric Lightwave’s PrecisionFlex® High Density Patch Panels.  Available with 1 MPO/MTP input port, and up to 12 LC Duplex output ports with shuttered adapters, these aluminum bodied cassettes provide excellent protection for this interconnect. Available in a variety of configurations, the PrecisionFlex® HD Cassette provides for a simple and straightforward solution for high density rack needs.

Find a Distributor

Product Downloads

Product Information

Download

Ordering Information

Instructions: Create a part number by using this character set & codes:

FT [ 1 1 ] – MP12C [ 2 2 2 ] – [ 3 ] – HD – [ 4 ]

[ 1 ] – Cassette Face Connectors[ 2 ] – Fiber Type[ 3 ] – Polish Type[ 4 ] – MPO Configuration Method
LC – LC Connector Ports (12 Ports)
SC – SC Connector Ports (6 Ports)		OM1 – OM1 Fiber (62.5 μm)
OM2 – OM2 Fiber (50 μm)
OM3 – OM3 Fiber (50 μm)
OM4 – OM4 Fiber (50 μm)
OS2 – Single Mode Fiber (9 μm)		Blank – UPC (Ultra-Physical Connector)
A – APC (Angle Polished Connector)		A – Method A
B – Method B
C – Method C

Features

  • Compact & Durable Frame
    • 144 LC Per 1RU
    • Robust Metal Body
  • Shuttered Adapters
    • No Lost Dust Caps
    • Keeps Bulkhead Ferule Clean
  • Quick-Release Tabs
    • Makes Installation & Removal Easier
  • Port Options
    • Handles Both LC & SC Connectors (Max. 12 LC & 6 SC)
  • Multiple Fiber Types
    • Handles Multimode & Single Mode; OM1, OM2, OM3, OM4, & OS1
