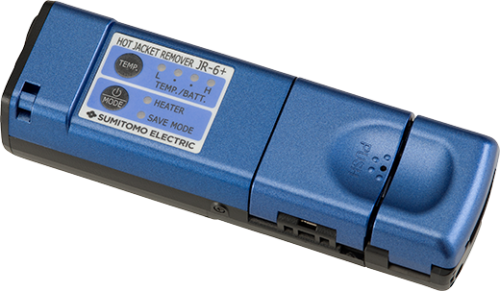

JR-6+ Thermal Jacket Remover
This lightweight and compact, yet rugged, jacket remover also features 4 temperature settings for maximum performance control. Designed for user friendliness, the JR-6+ includes a console panel located on top of the remover for ease of operation, bright LED lighting for easier viewing of remover settings, and power save and auto power off functions. The JR-6+ can be powered by the fusion splicer’s 12V DC output, the AC/DC adapter included, or the internal rechargeable battery. The remover features an ergonomic design for improved maneuverability, thereby eliminating hand fatigue. The required stripping force has been reduced 30% compared to other conventional stripper tools — making the JR-6+ the industry’s most advanced, rugged, and user-friendly optical fiber jacket remover.
Product Downloads
Specifications
| Property | Specification |
|---|---|
| Applicable Fiber | Optical Fiber Material Silica Glass Fiber Count Coating Thickness Single Fiber: Fiber Coating 250 ~ 400µmn2 to 12 Ribbon Fiber: Coating Thickness 300 ~ 400µmnCladding Diametern125µm |
| Coating Removal Length | 30 mm |
| Power Source | Battery Operation (with BU-JR6B): Nominal Voltage 7.4V; Nominal Capacity 1620mAh DC Operation (Power Supplied from Fusion Splicer): DC9~15Vn AC Operation (with ADC-1220S): AC100~240V, 50/60Hz |
| Operating Duration | Approx. 10 Hours |
| Number of Removal Cycles | Approx. 200 (Fully Charged) |
| Battery Charging Time | Approx. 2 Hours |
| Function | Temperature Settings: 4 levels Power Saving Function: Normal Mode / Power Save Mode Battery Remaining Capacity is Indicated in One of Four Levels when JR-6 is Powered On. |
| Environmental Conditions | Operating Condition Operating Temperature: 0° ~ +40°,nHumidity: 0% ~ 95% (Non-Condensing) Storage Condition: Storage Temperature: -40° ~ +60°, Humidity: 0% ~ 95% (Non-Condensing) |
Physical Characteristics
| Property | Specification |
|---|---|
| Height | 1.5 in (38 mm) |
| Width | 1.8 in (45 mm) |
| Depth | 5.4 in (138 mm) |
| Weight (Including Battery) | 0.52 lb (235 g) |
Ordering Information
JR-6+
| Part Number | Description |
|---|---|
| JR-6+ | Heated Jacket Remover, AC/DC Adapter, and Battery |
| JR-6BL | Replacement Blades for JR-6 (1 pr.) |
Accessories
| Part Number | Description |
|---|---|
| JR-6BL | Replacement Blade |
| M-AC/DC-2 | Mini-AC/DC Power Adapter |
| PC-2 | 12 V DC Power Cord, 1 M |
| BU-JR6B | Battery- JR-6B |
How-To Videos
See All Videos
Part of Sumitomo Electric Lightwave’s How -To video series. This guide provides a thorough introduction to Splicing with Sumitomo Electric’s Q102-CA+ Fusion Splicer
Features
- Easy Fiber Coating Removal
- Lightweight, Shock Resistant, Portable, Rugged Design
- Fast Temperature Stabilization to Reduce Warm-Up Time
- 2-12 Fiber Ribbons or Single Fiber Stripping
- 3-Way Power Supply (Battery, AC/DC, and Fusion Splicer’s)
